On an symmetric multiprocessor (SMP) machine, all data is visible from all processors. NonUniform Memory Access (NUMA) machines also have a shared address space. In both cases, there is a single shared memory space and a single operating system instance. However, in an SMP machine, each processor is functionally identical and has equal time access to every memory address. In contrast, a NUMA system has a shared address space, but the access time to memory vary over physical address ranges and between processing elements. The Intel Xeon 7500 series processor (Nehalem i7 architecture) is an example of NUMA architecture. Each processor has its own memory and can address the memory attached to another processor through the Quick Path Interconnect (QPI).
The Altix UV 1000 series is a family of multiprocessor distributed shared memory (DSM) computer systems that initially scale from 32 to 4,096 Intel processor cores as a cache-coherent single system image (SSI). The Altix UV 100 series is a family of multiprocessor distributed shared memory (DSM) computer systems that initially scale from 16 to 768 Intel processor cores as a cache-coherent SSI.

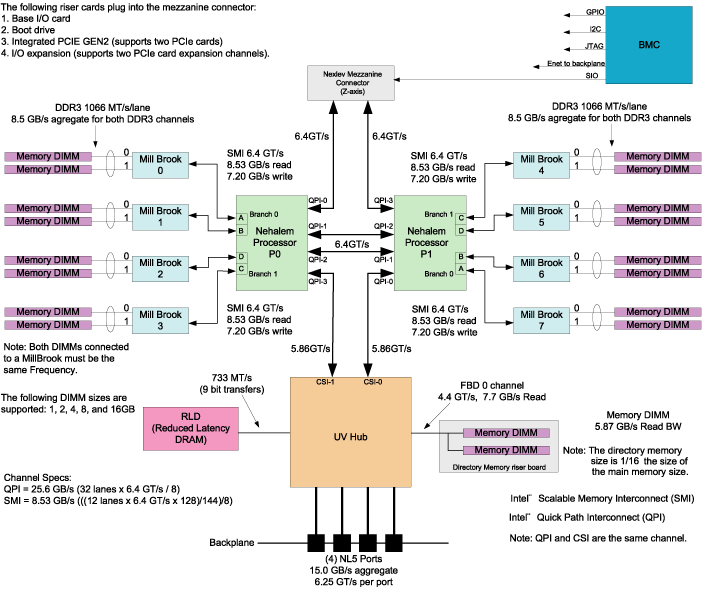

In both Altix UV series systems, there are two levels of NUMA: intranode managed by the QPI and internode managed through the HUB ASIC and NUMAlink 5. This section covers the following topics:
In the Altix UV 100 or Altix UV 1000 series server, memory is physically distributed both within and among the IRU enclosures (compute/memory/I/O blades); however, it is accessible to and shared by all devices connected by NUMAlink within the single-system image (SSI). This is to say that all components connected by NUMAlink sharing a single Linux operating system, operate and share the memory "fabric" of the system. Memory latency is the amount of time required for a processor to retrieve data from memory. Memory latency is lowest when a processor accesses local memory. Note the following sub-types of memory within a system:
If a processor accesses memory that it is connected to on a compute node blade, the memory is referred to as the node's local memory. Figure 5-1 shows a conceptual block diagram of the blade's memory, compute and I/O pathways.
If processors access memory located in other blade nodes within the IRU, (or other NUMAlink IRUs) the memory is referred to as remote memory.
The total memory within the NUMAlink system is referred to as global memory.
The Altix UV 100 and Altix 1000 server series use caches to reduce memory latency. Although data exists in local or remote memory, copies of the data can exist in various processor caches throughout the system. Cache coherency keeps the cached copies consistent.
To keep the copies consistent, the ccNUMA architecture uses directory-based coherence protocol. In directory-based coherence protocol, each block of memory (128 bytes) has an entry in a table that is referred to as a directory. Like the blocks of memory that they represent, the directories are distributed among the compute/memory blade nodes. A block of memory is also referred to as a cache line.
Each directory entry indicates the state of the memory block that it represents. For example, when the block is not cached, it is in an unowned state. When only one processor has a copy of the memory block, it is in an exclusive state. And when more than one processor has a copy of the block, it is in a shared state; a bit vector indicates which caches may contain a copy.
When a processor modifies a block of data, the processors that have the same block of data in their caches must be notified of the modification. The Altix UV 100 and Altix UV 1000 server series uses an invalidation method to maintain cache coherence. The invalidation method purges all unmodified copies of the block of data, and the processor that wants to modify the block receives exclusive ownership of the block.
In DSM systems, memory is physically located at various distances from the processors. As a result, memory access times (latencies) are different or "non-uniform." For example, it takes less time for a processor blade to reference its locally installed memory than to reference remote memory.
For cc-NUMA systems like the Altix UV 100 or Altix UV 1000, there is a performance penalty to access remote memory versus local memory. Because the Linux operating system has a tendency to migrate processes, the importance of using a placement tool becomes more apparent. Various data placement tools are described in this section.
For a detailed overview of Altix UV system architecture, see the SGI Altix UV 100 System User's Guide or SGI Altix UV 1000 System User's Guide
Special optimization applies to SGI Altix systems to exploit multiple paths to memory, as follows:
By default, all pages are allocated with a “first touch” policy.
The initialization loop, if executed serially, will get pages from single node.
In the parallel loop, multiple processors will access that one memory.
So, perform initialization in parallel, such that each processor initializes data that it is likely to access later for calculation.

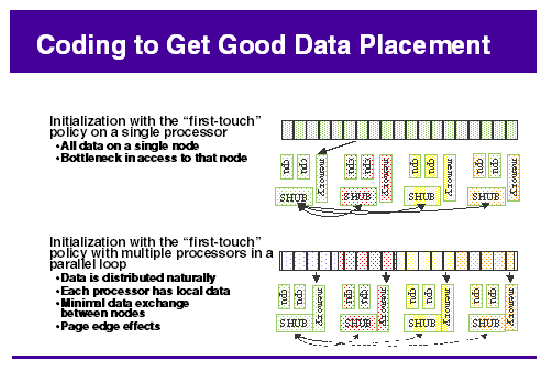

Figure 5-2, shows how to code to get good data placement.
cpusets -- Named subsets of system cpus/memories, used extensively in batch environments.
taskset and dplace -- Avoid poor data locality caused by process or thread drift from CPU to CPU.
taskset restricts execution to the listed set of CPUs (see the taskset -c --cpu-list option); however, processes are still free to move among listed CPUs.
dplace binds processes to specified CPUs in round-robin fashion; once pinned, they do not migrate. Use this for high performance and reproducibility of parallel codes.
For more information on CpuMemSets and cpusets, see chapter 4, “CPU Memory Sets and Scheduling” and chapter 5, “Cpuset System”, respectively, in the Linux Resource Administration Guide.
taskset [options] mask command [arg]... taskset [options] -p [mask] pid
The taskset command is used to set or retrieve the CPU affinity of a running process given its PID or to launch a new command with a given CPU affinity. CPU affinity is a scheduler property that "bonds" a process to a given set of CPUs on the system. The Linux scheduler will honor the given CPU affinity and the process will not run on any other CPUs. Note that the Linux scheduler also supports natural CPU affinity; the scheduler attempts to keep processes on the same CPU as long as practical for performance reasons. Therefore, forcing a specific CPU affinity is useful only in certain applications.
The CPU affinity is represented as a bitmask, with the lowest order bit corresponding to the first logical CPU and the highest order bit corresponding to the last logical CPU. Not all CPUs may exist on a given system but a mask may specify more CPUs than are present. A retrieved mask will reflect only the bits that correspond to CPUs physically on the system. If an invalid mask is given (that is, one that corresponds to no valid CPUs on the current system) an error is returned. The masks are typically given in hexadecimal. For example:
is processor #0
is processors #0 and #1
is all processors (#0 through #31)
When taskset returns, it is guaranteed that the given program has been scheduled to a legal CPU.
The taskset command does not pin a task to a specific CPU. It only restricts a task so that it does not run on any CPU that is not in the cpulist. For example, if you use taskset to launch an application that forks multiple tasks, it is possible that multiple tasks will initially be assigned to the same CPU even though there are idle CPUs that are in the cpulist. Scheduler load balancing software will eventually distribute the tasks so that CPU bound tasks run on different CPUs. However, the exact placement is not predictable and can vary from run-to-run. After the tasks are evenly distributed (assuming that happens), nothing prevents tasks from jumping to different CPUs. This can affect memory latency since pages that were node-local before the jump may be remote after the jump.
If you are running an MPI application, SGI recommends that you do not use the taskset command. The taskset command can pin the MPI shepherd process (which is a waste of a CPU) and then putting the remaining working MPI rank on one of the CPUs that already had some other rank running on it. Instead of taskset, SGI recommends using the dplace(1) (see “dplace Command”) or the environment variable MPI_DSM_CPULIST . The following example assumes a job running on eight CPUs. For example:
# mpirun -np 8 dplace -s1 -c10,11,16-21 myMPIapplication ...
setenv MPI_DSM_CPULIST 10,11,16-21 mpirun -np 8 myMPIapplication ...
For more detailed information, see the taskset(1) man page.
To run an executable on CPU 1 (the cpumask for CPU 1 is 0x2), perform the following:
# taskset 0x2 executable name
To move pid 14057 to CPU 0 (the cpumask for cpu 0 is 0x1), perform the following:
# taskset -p 0x1 14057
To run an MPI Abaqus/Std job on an Altix system with eight CPUs, perform the following:
# taskset -c 8-15 ./runme < /dev/null &
The stdin is redirected to /dev/null to avoid a SIGTTIN signal for MPT applications.
The following example uses the taskset command to lock a given process to a particular CPU (CPU5) and then uses the profile(1) command to profile it. It then shows how to use taskset to move the process to another CPU (CPU3).
# taskset -p -c 5 16269 pid 16269's current affinity list: 0-15 pid 16269's new affinity list: 5
# taskset -p 16269 -c 3 pid 16269's current affinity list: 5 pid 16269's new affinity list: 3
You can use the dplace(1) command to bind a related set of processes to specific CPUs or nodes to prevent process migration. This can improve the performance of your application since it increases the percentage of memory accesses that are local.
dplace [-e] [-c cpu_numbers] [-s skip_count] [-n process_name] \ [-x skip_mask] [-r [l|b|t]] [-o log_file] [-v 1|2] \ command [command-args] dplace [-p placement_file] [-o log_file] command [command-args] dplace [-q] [-qq] [-qqq]
Scheduling and memory placement policies for the process are set up according to dplace command line arguments.
By default, memory is allocated to a process on the node on which the process is executing. If a process moves from node to node while it running, a higher percentage of memory references are made to remote nodes. Because remote accesses typically have higher access times, process performance can be diminished. CPU instruction pipelines also have to be reloaded.
You can use the dplace command to bind a related set of processes to specific CPUs or nodes to prevent process migrations. In some cases, this improves performance since a higher percentage of memory accesses are made to local nodes.
Processes always execute within a CpuMemSet. The CpuMemSet specifies the CPUs on which a process can execute. By default, processes usually execute in a CpuMemSet that contains all the CPUs in the system (for detailed information on CpusMemSets, see the Linux Resource Administration Guide).
The dplace command invokes an SGI kernel hook (module called numatools) to create a placement container consisting of all the CPUs (or a or a subset of CPUs) of a cpuset. The dplace process is placed in this container and by default is bound to the first CPU of the cpuset associated with the container. Then dplace invokes exec to execute the command.
The command executes within this placement container and remains bound to the first CPU of the container. As the command forks child processes, they inherit the container and are bound to the next available CPU of the container.
If you do not specify a placement file, dplace binds processes sequentially in a round-robin fashion to CPUs of the placement container. For example, if the current cpuset consists of physical CPUs 2, 3, 8, and 9, the first process launched by dplace is bound to CPU 2. The first child process forked by this process is bound to CPU 3, the next process (regardless of whether it is forked by parent or child) to 8, and so on. If more processes are forked than there are CPUs in the cpuset, binding starts over with the first CPU in the cpuset.
For more information on dplace(1) and examples of how to use the command, see the dplace(1) man page.
The dplace(1) command accepts the following options:
-c cpu_numbers: Specified as a list of cpus, optionally strided cpu ranges, or a striding pattern. Example: "-c 1", "-c 2-4", "-c 1,4-8,3", "-c 2-8:3", " -c CS", "-c BT". The specification " -c 2-4" is equivalent to "-c 2,3,4" and " -c 2-8:3" is equivalent to 2,5,8. Ranges may also be specified in reverse order: "-c 12-8" is equivalent to 12,11,10,9,8. CPU numbers are NOT physical cpu numbers. They are logical cpu number that are relative to the cpus that are in the set of allowed cpus as specified by the current cpuset. A cpu value of "x" (or " *"), in the argument list for -c option, indicates that binding should not be done for that process."x" should be used only if the -e option is also used. Cpu numbers start at 0. For striding patterns any subset of the characters (B)lade, (S)ocket, (C)ore, (T)hread may be used and their ordering specifies the nesting of the iteration. For example "SC" means to iterate all the cores in a socket before moving to the next CPU socket, while "CB" means to pin to the first core of each blade, then the second core of every blade, etc. For best results, use the -e option when using stride patterns. If the -c option is not specified, all cpus of the current cpuset are available. The command itself (which is exec'd by dplace) is the first process to be placed by the -c cpu_numbers .
-e: Exact placement. As processes are created, they are bound to cpus in the exact order that the cpus are specified in the cpu list. Cpu numbers may appear multiple times in the list. A cpu value of "x" indicates that binding should not be done for that process. If the end of the list is reached, binding starts over at the beginning of the list.
-o: Write a trace file to Write a trace file to <log file> that decribes the placement actions that were made for each fork, exec, and so on. Each line contains a timestamp, process id:thread number, cpu that task was executing on, taskname | placement action. Works with version 2 only.
-s skip_count: Skips the first skip_count processes before starting to place processes onto CPUs. This option is useful if the first skip_count processes are “shepherd" processes that are used only for launching the application. If skip_count is not specified, a default value of 0 is used.
-n process_name: Only processes named process_name are placed. Other processes are ignored and are not explicitly bound to CPUs.
The process_name argument is the basename of the executable.
-r: Specifies that text should be replicated on the node or nodes where the application is running. In some cases, replication will improve performance by reducing the need to make offnode memory references for code. The replication option applies to all programs placed by the dplace command. See the dplace(5) man page for additional information on text replication. The replication options are a string of one or more of the following characters:
Replicate library text
Replicate binary (a.out) text
Thread round-robin option
-x skip_mask: Provides the ability to skip placement of processes. The skip_mask argument is a bitmask. If bit N of skip_mask is set, then the N+1th process that is forked is not placed. For example, setting the mask to 6 prevents the second and third processes from being placed. The first process (the process named by the command) will be assigned to the first CPU. The second and third processes are not placed. The fourth process is assigned to the second CPU, and so on. This option is useful for certain classes of threaded applications that spawn a few helper processes that typically do not use much CPU time.
|Note: OpenMP with Intel applications should be placed using the -x option with a skip_mask of 2 (-x2). This could change in future versions of OpenMP. For applications compiled using the Native Posix Thread Library (NPTL), use the -x2 option.|
-v: Provides the ability to run in version 1 or version 2 compatibility mode if the kernel support is available. If not specified, version 2 compatibility is selected. See COMPATIBILITY section of the dplace(1) man page for more details. Note: version 1 requires kernel support for PAGG.
-p placement_file: Specifies a placement file that contains additional directives that are used to control process placement.
command [command-args]: Specifies the command you want to place and its arguments.
-q: Lists the global count of the number of active processes that have been placed (by dplace) on each CPU in the current cpuset. Note that CPU numbers are logical CPU numbers within the cpuset, not physical CPU numbers. If specified twice, lists the current dplace jobs that are running. If specified three times, lists the current dplace jobs and the tasks that are in each job.
You can use the dplace command to improve placement of MPI programs on NUMA systems and verify placement of certain data structures of a long running MPI program by running a command such as the following:
mpirun -np 64 /usr/bin/dplace -s1 -c 0-63 ./a.out
You can then use the dlook(1) command to verify placement of certain data structures of a long running MPI program by using the dlook command in another window on one of the slave thread PIDs to verify placement. For more information on using the dlook command, see “dlook Command” and the dlook(1) man page.
To run an OpenMP program on logical CPUs 4 through 7 within the current cpuset, perform the following:
%efc -o prog -openmp -O3 program.f %setenv OMP_NUM_THREADS 4 %dplace -x6 -c4-7 ./prog
The dplace(1) command has a static load balancing feature so that you do not necessarily have to supply a CPU list. To place prog1 on logical CPUs 0 through 3 and prog2 on logical CPUs 4 through 7, perform the following:
%setenv OMP_NUM_THREADS 4 %dplace -x6 ./prog1 & %dplace -x6 ./prog2 &
You can use the dplace -q command to display the static load information.
The following examples assume that the command is executed from a shell running in a cpuset consisting of physical CPUs 8 through 15.
|dplace -c2 date|
Runs the date command on physical CPU 10.
|dplace make linux|
Runs gcc and related processes on physical CPUs 8 through 15.
|dplace -c0-4,6 make linux|
Runs gcc and related processes on physical CPUs 8 through 12 or 14.
|taskset 4,5,6,7 dplace app|
The taskset command restricts execution to physical CPUs 12 through 15. The dplace command sequentially binds processes to CPUs 12 through 15.
To use the dplace command accurately, you should know how your placed tasks are being created in terms of the fork, exec, and pthread_create calls. Determine whether each of these worker calls are an MPI rank task or are they groups of pthreads created by rank tasks? Here is an example of two MPI ranks, each creating three threads:
cat <<EOF > placefile firsttask cpu=0 exec name=mpiapp cpu=1 fork name=mpiapp cpu=4-8:4 exact thread name=mpiapp oncpu=4 cpu=5-7 exact thread name=mpiapp oncpu=8 cpu=9-11 exact EOF # mpirun is placed on cpu 0 in this example # the root mpiapp is placed on cpu 1 in this example # or, if your version of dplace supports the "cpurel=" option: # firsttask cpu=0 # fork name=mpiapp cpu=4-8:4 exact # thread name=mpiapp oncpu=4 cpurel=1-3 exact # create 2 rank tasks, each will pthread_create 3 more # ranks will be on 4 and 8 # thread children on 5,6,7 9,10,11 dplace -p placefile mpirun -np 2 ~cpw/bin/mpiapp -P 3 -l exit
You can use the debugger to determine if it is working. It should show two MPI rank applications, each with three pthreads, as follows:
>> pthreads | grep mpiapp px *(task_struct *)e00002343c528000 17769 17769 17763 0 mpiapp member task: e000013817540000 17795 17769 17763 0 5 mpiapp member task: e000013473aa8000 17796 17769 17763 0 6 mpiapp member task: e000013817c68000 17798 17769 17763 0 mpiapp px *(task_struct *)e0000234704f0000 17770 17770 17763 0 mpiapp member task: e000023466ed8000 17794 17770 17763 0 9 mpiapp member task: e00002384cce0000 17797 17770 17763 0 mpiapp member task: e00002342c448000 17799 17770 17763 0 mpiapp
And you can use the debugger, to see a root application, the parent of the two MPI rank applications, as follows:
>> ps | grep mpiapp 0xe00000340b300000 1139 17763 17729 1 0xc800000 - mpiapp 0xe00002343c528000 1139 17769 17763 0 0xc800040 - mpiapp 0xe0000234704f0000 1139 17770 17763 0 0xc800040 8 mpiapp
Placed as specified:
>> oncpus e00002343c528000 e000013817540000 e000013473aa8000 >> e000013817c68000 e0 000234704f0000 e000023466ed8000 e00002384cce0000 e00002342c448000 task: 0xe00002343c528000 mpiapp cpus_allowed: 4 task: 0xe000013817540000 mpiapp cpus_allowed: 5 task: 0xe000013473aa8000 mpiapp cpus_allowed: 6 task: 0xe000013817c68000 mpiapp cpus_allowed: 7 task: 0xe0000234704f0000 mpiapp cpus_allowed: 8 task: 0xe000023466ed8000 mpiapp cpus_allowed: 9 task: 0xe00002384cce0000 mpiapp cpus_allowed: 10 task: 0xe00002342c448000 mpiapp cpus_allowed: 11
In the example that follows, a user used the dplace -s1 -c0-15 command to bind 16 processes to run on 0-15 CPUs. However, output from the top(1) command shows only 13 CPUs running with CPUs 13, 14, and 15 still idle and CPUs 0, 1 and 2 are shared with 6 processes.
263 processes: 225 sleeping, 18 running, 3 zombie, 17 stopped CPU states: cpu user nice system irq softirq iowait idle total 1265.6% 0.0% 28.8% 0.0% 11.2% 0.0% 291.2% cpu00 100.0% 0.0% 0.0% 0.0% 0.0% 0.0% 0.0% cpu01 90.1% 0.0% 0.0% 0.0% 9.7% 0.0% 0.0% cpu02 99.9% 0.0% 0.0% 0.0% 0.0% 0.0% 0.0% cpu03 99.9% 0.0% 0.0% 0.0% 0.0% 0.0% 0.0% cpu04 100.0% 0.0% 0.0% 0.0% 0.0% 0.0% 0.0% cpu05 100.0% 0.0% 0.0% 0.0% 0.0% 0.0% 0.0% cpu06 100.0% 0.0% 0.0% 0.0% 0.0% 0.0% 0.0% cpu07 88.4% 0.0% 10.6% 0.0% 0.8% 0.0% 0.0% cpu08 100.0% 0.0% 0.0% 0.0% 0.0% 0.0% 0.0% cpu09 99.9% 0.0% 0.0% 0.0% 0.0% 0.0% 0.0% cpu10 99.9% 0.0% 0.0% 0.0% 0.0% 0.0% 0.0% cpu11 88.1% 0.0% 11.2% 0.0% 0.6% 0.0% 0.0% cpu12 99.7% 0.0% 0.2% 0.0% 0.0% 0.0% 0.0% cpu13 0.0% 0.0% 2.5% 0.0% 0.0% 0.0% 97.4% cpu14 0.8% 0.0% 1.6% 0.0% 0.0% 0.0% 97.5% cpu15 0.0% 0.0% 2.4% 0.0% 0.0% 0.0% 97.5% Mem: 60134432k av, 15746912k used, 44387520k free, 0k shrd, 672k buff 351024k active, 13594288k inactive Swap: 2559968k av, 0k used, 2559968k free 2652128k cached PID USER PRI NI SIZE RSS SHARE STAT %CPU %MEM TIME CPU COMMAND 7653 ccao 25 0 115G 586M 114G R 99.9 0.9 0:08 3 mocassin 7656 ccao 25 0 115G 586M 114G R 99.9 0.9 0:08 6 mocassin 7654 ccao 25 0 115G 586M 114G R 99.8 0.9 0:08 4 mocassin 7655 ccao 25 0 115G 586M 114G R 99.8 0.9 0:08 5 mocassin 7658 ccao 25 0 115G 586M 114G R 99.8 0.9 0:08 8 mocassin 7659 ccao 25 0 115G 586M 114G R 99.8 0.9 0:08 9 mocassin 7660 ccao 25 0 115G 586M 114G R 99.8 0.9 0:08 10 mocassin 7662 ccao 25 0 115G 586M 114G R 99.7 0.9 0:08 12 mocassin 7657 ccao 25 0 115G 586M 114G R 88.5 0.9 0:07 7 mocassin 7661 ccao 25 0 115G 586M 114G R 88.3 0.9 0:07 11 mocassin 7649 ccao 25 0 115G 586M 114G R 55.2 0.9 0:04 2 mocassin 7651 ccao 25 0 115G 586M 114G R 54.1 0.9 0:03 1 mocassin 7650 ccao 25 0 115G 586M 114G R 50.0 0.9 0:04 0 mocassin 7647 ccao 25 0 115G 586M 114G R 49.8 0.9 0:03 0 mocassin 7652 ccao 25 0 115G 586M 114G R 44.7 0.9 0:04 2 mocassin 7648 ccao 25 0 115G 586M 114G R 35.9 0.9 0:03 1 mocassin
An application can start some threads executing for a very short time yet the threads still have taken a token in the CPU list. Then, when the compute threads are finally started, the list is exhausted and restarts from the beginning. Consequently, some threads end up sharing the same CPU. To bypass this, try to eliminate the "ghost" thread creation, as follows:
Check for a call to the "system" function. This is often responsible for the placement failure due to unexpected thread creation.
When all the compute processes have the same name, you can do this by issuing a command, such as the following:
dplace -c0-15 -n compute-process-name ...
You can also run dplace -e -c0-32 on 16 CPUs to understand the pattern of the thread creation. If by chance, this pattern is the same from one run to the other (unfortunately race between thread creation often occurs), you can find the right flag to dplace. For example, if you want to run on CPU 0-3, with dplace -e -C0-16 and you see that threads are always placed on CPU 0, 1, 5, and 6, then dplace -e -c0,1,x,x,x,2,3 or dplace -x24 -c0-3 (24 =11000, place the 2 first and skip 3 before placing) should place your threads correctly.
The dlook(1) command allows you to display the memory map and CPU usage for a specified process as follows:
dlook [-a] [-p] [-h] [-l] [-n] [-o outfile] [-s secs] command [command-args] dlook [-a] [-p] [-h] [-l] [-n] [-o outfile] [-s secs] pid
For each page in the virtual address space of the process, dlook(1) prints the following information:
The object that owns the page, such as a file, SYSV shared memory, a device driver, and so on.
The type of page, such as random access memory (RAM), FETCHOP, IOSPACE, and so on.
If the page type is RAM memory, the following information is displayed:
Memory attributes, such as, SHARED, DIRTY, and so on
The node on which the page is located
The physical address of the page (optional)
Optionally, the dlook(1) command also prints the amount of user and system CPU time that the process has executed on each physical CPU in the system.
Two forms of the dlook(1) command are provided. In one form, dlook prints information about an existing process that is identified by a process ID (PID). To use this form of the command, you must be the owner of the process or be running with root privilege. In the other form, you use dlook on a command you are launching and thus are the owner.
The dlook(1) command accepts the following options:
-a: Shows the physical addresses of each page in the address space.
-h: Explicitly lists holes in the address space.
-l: Shows libraries.
-p: Show raw hardware page table entries.
-o: Outputs to file name ( outfile). If not specified, output is written to stdout.
-s: Specifies a sample interval in seconds. Information about the process is displayed every second ( secs) of CPU usage by the process.
An example for the sleep process with a PID of 4702 is as follows:
|Note: The output has been abbreviated to shorten the example and bold headings added for easier reading.|
dlook 4702 Peek: sleep Pid: 4702 Thu Aug 22 10:45:34 2002 Cputime by cpu (in seconds): user system TOTAL 0.002 0.033 cpu1 0.002 0.033 Process memory map: 2000000000000000-2000000000030000 r-xp 0000000000000000 04:03 4479 /lib/ld-2.2.4.so [2000000000000000-200000000002c000] 11 pages on node 1 MEMORY|SHARED 2000000000030000-200000000003c000 rw-p 0000000000000000 00:00 0 [2000000000030000-200000000003c000] 3 pages on node 0 MEMORY|DIRTY ... 2000000000128000-2000000000370000 r-xp 0000000000000000 04:03 4672 /lib/libc-2.2.4.so [2000000000128000-2000000000164000] 15 pages on node 1 MEMORY|SHARED [2000000000174000-2000000000188000] 5 pages on node 2 MEMORY|SHARED [2000000000188000-2000000000190000] 2 pages on node 1 MEMORY|SHARED [200000000019c000-20000000001a8000] 3 pages on node 1 MEMORY|SHARED [20000000001c8000-20000000001d0000] 2 pages on node 1 MEMORY|SHARED [20000000001fc000-2000000000204000] 2 pages on node 1 MEMORY|SHARED [200000000020c000-2000000000230000] 9 pages on node 1 MEMORY|SHARED [200000000026c000-2000000000270000] 1 page on node 1 MEMORY|SHARED [2000000000284000-2000000000288000] 1 page on node 1 MEMORY|SHARED [20000000002b4000-20000000002b8000] 1 page on node 1 MEMORY|SHARED [20000000002c4000-20000000002c8000] 1 page on node 1 MEMORY|SHARED [20000000002d0000-20000000002d8000] 2 pages on node 1 MEMORY|SHARED [20000000002dc000-20000000002e0000] 1 page on node 1 MEMORY|SHARED [2000000000340000-2000000000344000] 1 page on node 1 MEMORY|SHARED [200000000034c000-2000000000358000] 3 pages on node 2 MEMORY|SHARED .... 20000000003c8000-20000000003d0000 rw-p 0000000000000000 00:00 0 [20000000003c8000-20000000003d0000] 2 pages on node 0 MEMORY|DIRTY
The dlook command gives the name of the process (Peek: sleep), the process ID, and time and date it was invoked. It provides total user and system CPU time in seconds for the process.
Under the heading Process memory map, the dlook command prints information about a process from the /proc/pid/cpu and /proc/ pid/maps files. On the left, it shows the memory segment with the offsets below in decimal. In the middle of the output page, it shows the type of access, time of execution, the PID, and the object that owns the memory (in this case, /lib/ld-2.2.4.so). The characters s or p indicate whether the page is mapped as sharable (s) with other processes or is private (p). The right side of the output page shows the number of pages of memory consumed and on which nodes the pages reside. A page is 16, 384 bytes. Dirty memory means that the memory has been modified by a user.
In the second form of the dlook command, you specify a command and optional command arguments. The dlook command issues an exec call on the command and passes the command arguments. When the process terminates, dlook prints information about the process, as shown in the following example:
dlook date Thu Aug 22 10:39:20 CDT 2002 _______________________________________________________________________________ Exit: date Pid: 4680 Thu Aug 22 10:39:20 2002 Process memory map: 2000000000030000-200000000003c000 rw-p 0000000000000000 00:00 0 [2000000000030000-200000000003c000] 3 pages on node 3 MEMORY|DIRTY 20000000002dc000-20000000002e4000 rw-p 0000000000000000 00:00 0 [20000000002dc000-20000000002e4000] 2 pages on node 3 MEMORY|DIRTY 2000000000324000-2000000000334000 rw-p 0000000000000000 00:00 0 [2000000000324000-2000000000328000] 1 page on node 3 MEMORY|DIRTY 4000000000000000-400000000000c000 r-xp 0000000000000000 04:03 9657220 /bin/date [4000000000000000-400000000000c000] 3 pages on node 1 MEMORY|SHARED 6000000000008000-6000000000010000 rw-p 0000000000008000 04:03 9657220 /bin/date [600000000000c000-6000000000010000] 1 page on node 3 MEMORY|DIRTY 6000000000010000-6000000000014000 rwxp 0000000000000000 00:00 0 [6000000000010000-6000000000014000] 1 page on node 3 MEMORY|DIRTY 60000fff80000000-60000fff80004000 rw-p 0000000000000000 00:00 0 [60000fff80000000-60000fff80004000] 1 page on node 3 MEMORY|DIRTY 60000fffffff4000-60000fffffffc000 rwxp ffffffffffffc000 00:00 0 [60000fffffff4000-60000fffffffc000] 2 pages on node 3 MEMORY|DIRTY
If you use the dlook command with the -s secs option, the information is sampled at regular internals. The output for the command dlook -s 5 sleep 50 is as follows:
Exit: sleep Pid: 5617 Thu Aug 22 11:16:05 2002 Process memory map: 2000000000030000-200000000003c000 rw-p 0000000000000000 00:00 0 [2000000000030000-200000000003c000] 3 pages on node 3 MEMORY|DIRTY 2000000000134000-2000000000140000 rw-p 0000000000000000 00:00 0 20000000003a4000-20000000003a8000 rw-p 0000000000000000 00:00 0 [20000000003a4000-20000000003a8000] 1 page on node 3 MEMORY|DIRTY 20000000003e0000-20000000003ec000 rw-p 0000000000000000 00:00 0 [20000000003e0000-20000000003ec000] 3 pages on node 3 MEMORY|DIRTY 4000000000000000-4000000000008000 r-xp 0000000000000000 04:03 9657225 /bin/sleep [4000000000000000-4000000000008000] 2 pages on node 3 MEMORY|SHARED 6000000000004000-6000000000008000 rw-p 0000000000004000 04:03 9657225 /bin/sleep [6000000000004000-6000000000008000] 1 page on node 3 MEMORY|DIRTY 6000000000008000-600000000000c000 rwxp 0000000000000000 00:00 0 [6000000000008000-600000000000c000] 1 page on node 3 MEMORY|DIRTY 60000fff80000000-60000fff80004000 rw-p 0000000000000000 00:00 0 [60000fff80000000-60000fff80004000] 1 page on node 3 MEMORY|DIRTY 60000fffffff4000-60000fffffffc000 rwxp ffffffffffffc000 00:00 0 [60000fffffff4000-60000fffffffc000] 2 pages on node 3 MEMORY|DIRTY
You can run a Message Passing Interface (MPI) job using the mpirun command and print the memory map for each thread, or redirect the ouput to a file, as follows:
|Note: The output has been abbreviated to shorten the example and bold headings added for easier reading.|
mpirun -np 8 dlook -o dlook.out ft.C.8 Contents of dlook.out: _______________________________________________________________________________ Exit: ft.C.8 Pid: 2306 Fri Aug 30 14:33:37 2002 Process memory map: 2000000000030000-200000000003c000 rw-p 0000000000000000 00:00 0 [2000000000030000-2000000000034000] 1 page on node 21 MEMORY|DIRTY [2000000000034000-200000000003c000] 2 pages on node 12 MEMORY|DIRTY|SHARED 2000000000044000-2000000000060000 rw-p 0000000000000000 00:00 0 [2000000000044000-2000000000050000] 3 pages on node 12 MEMORY|DIRTY|SHARED ... _______________________________________________________________________________ _______________________________________________________________________________ Exit: ft.C.8 Pid: 2310 Fri Aug 30 14:33:37 2002 Process memory map: 2000000000030000-200000000003c000 rw-p 0000000000000000 00:00 0 [2000000000030000-2000000000034000] 1 page on node 25 MEMORY|DIRTY [2000000000034000-200000000003c000] 2 pages on node 12 MEMORY|DIRTY|SHARED 2000000000044000-2000000000060000 rw-p 0000000000000000 00:00 0 [2000000000044000-2000000000050000] 3 pages on node 12 MEMORY|DIRTY|SHARED [2000000000050000-2000000000054000] 1 page on node 25 MEMORY|DIRTY ... _______________________________________________________________________________ _______________________________________________________________________________ Exit: ft.C.8 Pid: 2307 Fri Aug 30 14:33:37 2002 Process memory map: 2000000000030000-200000000003c000 rw-p 0000000000000000 00:00 0 [2000000000030000-2000000000034000] 1 page on node 30 MEMORY|DIRTY [2000000000034000-200000000003c000] 2 pages on node 12 MEMORY|DIRTY|SHARED 2000000000044000-2000000000060000 rw-p 0000000000000000 00:00 0 [2000000000044000-2000000000050000] 3 pages on node 12 MEMORY|DIRTY|SHARED [2000000000050000-2000000000054000] 1 page on node 30 MEMORY|DIRTY ... _______________________________________________________________________________ _______________________________________________________________________________ Exit: ft.C.8 Pid: 2308 Fri Aug 30 14:33:37 2002 Process memory map: 2000000000030000-200000000003c000 rw-p 0000000000000000 00:00 0 [2000000000030000-2000000000034000] 1 page on node 0 MEMORY|DIRTY [2000000000034000-200000000003c000] 2 pages on node 12 MEMORY|DIRTY|SHARED 2000000000044000-2000000000060000 rw-p 0000000000000000 00:00 0 [2000000000044000-2000000000050000] 3 pages on node 12 MEMORY|DIRTY|SHARED [2000000000050000-2000000000054000] 1 page on node 0 MEMORY|DIRTY ...
For more information on the dlook command, see the dlook man page.
The omplace(1) command is a tool for controlling the placement of MPI processes and OpenMP threads.
The omplace command causes the successive threads in a hybrid MPI/OpenMP job to be placed on unique CPUs. The CPUs are assigned in order from the effective CPU list within the containing cpuset.
This command is a wrapper script for dplace (1) that can be used with MPI, OpenMP, pthreads, and hybrid MPI/OpenMP and MPI/pthreads codes. It generates the proper dplace placement file syntax automatically. It also supports some unique options like block-strided CPU lists.
The CPU placement is performed by dynamically generating a placement file and invoking dplace with the MPI job launch. For example, the threads in a 2-process MPI program with 2 threads per process would be placed, as follows:
rank 0 thread 0 on CPU 0 rank 0 thread 1 on CPU 1 rank 1 thread 0 on CPU 2 rank 1 thread 1 on CPU 3
For more information, see the omplace(1) man page and “Run-Time Tuning” chapter in the Message Passing Toolkit (MPT) User's Guide.
The numactl(8) command runs processes with a specific NUMA scheduling or memory placement policy. The policy is set for command and inherited by all of its children. In addition it can set persistent policy for shared memory segments or files. For more information, see the numactl(8) man page.
To configure numatools kernel module to be started automatically during system startup, use the chkconfig(8) command as follows:
chkconfig --add numatools
To turn on numatools, enter the following command:
This step will be done automatically for subsequent system reboots when numatools are configured on by using the chkconfig(8) utility.
The following steps are required to disable numatools:
To turn off numatools, enter the following:
To stop numatools from initiating after a system reboot, use the chkconfig (8) command as follows:
chkconfig --del numatools
The cpuset facility is primarily a workload manager tool permitting a system administrator to restrict the number of processor and memory resources that a process or set of processes may use. A cpuset defines a list of CPUs and memory nodes. A process contained in a cpuset may only execute on the CPUs in that cpuset and may only allocate memory on the memory nodes in that cpuset. Essentially, cpusets provide you with a CPU and memory containers or “soft partitions” within which you can run sets of related tasks. Using cpusets on an SGI Altix UV system improves cache locality and memory access times and can substantially improve an application's performance and runtime repeatability. Restraining all other jobs from using any of the CPUs or memory resources assigned to a critical job minimizes interference from other jobs on the system. For example, Message Passing Interface (MPI) jobs frequently consist of a number of threads that communicate using message passing interfaces. All threads need to be executing at the same time. If a single thread loses a CPU, all threads stop making forward progress and spin at a barrier.
Cpusets can eliminate the need for a gang scheduler, provide isolation of one such job from other tasks on a system, and facilitate providing equal resources to each thread in a job. This results in both optimum and repeatable performance.
In addition to their traditional use to control the placement of jobs on the CPUs and memory nodes of a system, cpusets also provide a convenient mechanism to control the use of Hyper-Threading Technology.
Cpusets are represented in a hierarchical virtual file system. Cpusets can be nested and they have file-like permissions.
The sched_setaffinity, mbind, and set_mempolicy system calls allow you to specify the CPU and memory placement for individual tasks. On smaller or limited-use systems, these calls may be sufficient.
The kernel cpuset facility provides additional support for system-wide management of CPU and memory resources by related sets of tasks. It provides a hierarchical structure to the resources, with filesystem-like namespace and permissions, and support for guaranteed exclusive use of resources.
You can have a boot cpuset running the traditional daemon and server tasks and a second cpuset to hold interactive telnet, rlogin and/or secure shell (SSH) user sessions called the user cpuset.
Creating a user cpuset provides additional isolation between interactive user login sessions and essential system tasks. For example, a user process in the user cpuset consuming excessive CPU or memory resources will not seriously impact essential system services in the boot cpuset.
This section covers the following topics:
The Linux 2.6 kernel provides the following support for cpusets:
Each task has a link to a cpuset structure that specifies the CPUs and memory nodes available for its use.
Hooks in the sched_setaffinity system call, used for CPU placement, and in the mbind system call, used for memory placement, ensure that any requested CPU or memory node is available in that task's cpuset.
All tasks sharing the same placement constraints reference the same cpuset.
Kernel cpusets are arranged in a hierarchical virtual file system, reflecting the possible nesting of "soft partitions".
The kernel task scheduler is constrained to only schedule a task on the CPUs in that task's cpuset.
The kernel memory allocation mechanism is constrained to only allocate physical memory to a task from the memory nodes in that task's cpuset.
The kernel memory allocation mechanism provides an economical, per-cpuset metric of the aggregate memory pressure of the tasks in a cpuset. Memory pressure is defined as the frequency of requests for a free memory page that is not easily satisfied by an available free page.
The kernel memory allocation mechanism provides an option that allows you to request that memory pages used for file I/O (the kernel page cache) and associated kernel data structures for file inodes and directories be evenly spread across all the memory nodes in a cpuset. Otherwise, they are preferentially allocated on whatever memory node that the task first accessed the memory page.
You can control the memory migration facility in the kernel using per-cpuset files. When the memory nodes allowed to a task by cpusets changes, any memory pages no longer allowed on that node may be migrated to nodes now allowed. For more information, see “Safe Job Migration and Cpusets”.
A cpuset constrains the jobs (set of related tasks) running in it to a subset of the system's memory and CPUs. The cpuset facility allows you and your system service software to do the following:
Create and delete named cpusets.
Decide which CPUs and memory nodes are available to a cpuset.
Attach a task to a particular cpuset.
Identify all tasks sharing the same cpuset.
Exclude any other cpuset from overlapping a given cpuset, thereby, giving the tasks running in that cpuset exclusive use of those CPUs and memory nodes.
Perform bulk operations on all tasks associated with a cpuset, such as varying the resources available to that cpuset or hibernating those tasks in temporary favor of some other job.
Perform sub-partitioning of system resources using hierarchical permissions and resource management.
The kernel, at system boot time, initializes one cpuset, the root cpuset, containing the entire system's CPUs and memory nodes. Subsequent user space operations can create additional cpusets.
Mounting the cpuset virtual file system (VFS) at /dev/cpuset exposes the kernel mechanism to user space. This VFS allows for nested resource allocations and the associated hierarchical permission model.
You can initialize and perform other cpuset operations, using any of the these three mechanisms, as follows:
You can create, change, or query cpusets by using shell commands on /dev/cpuset, such as echo(1), cat(1), mkdir(1), or ls(1).
You can use the cpuset(1) command line utility to create or destroy cpusets or to retrieve information about existing cpusets and to attach processes to existing cpusets.
You can use the libcpuset C programming application programming interface (API) functions to query or change them from within your application. You can find information about libcpuset at /usr/share/doc/packages/libcpuset/libcpuset.html .
Use the grep(1) command to search the/proc/filesystems for cpusets, as follows:
% grep cpuset /proc/filesystems nodev cpuset
Determine if cpuset tasks file is present on your system by changing directory to /dev/cpuset and listing the content of the directory, as follows:
% cd /dev/cpuset Directory: /dev/cpuset % ls cpu_exclusive cpus mem_exclusive mems notify_on_release pagecache_list pagecache_local slabcache_local tasks
If the /dev/cpuset/tasks file is not present on your system, it means the cpuset file system is not mounted (usually, it is automatically mounted when the system was booted). As root, you can mount the cpuset file system, as follows:
% mount -t cpuset cpuset /dev/cpuset
Within a single cpuset, use facilities such as taskset(1), dplace(1), first-touch memory placement, pthreads, sched_setaffinity and mbind to manage processor and memory placement to a more fine-grained level.
The user-level bitmask library supports convenient manipulation of multiword bitmasks useful for CPUs and memory nodes. This bitmask library is required by and designed to work with the cpuset library. You can find information on the bitmask library on your system at /usr/share/doc/packages/libbitmask/libbitmask.html .
The Linux 2.6 kernel supports additional processor and memory placement mechanisms, as follows:
|Note: Use the uname(1)
command to print out system information to make sure you are running the
Linux 2.6.x sn2 kernel, as follows:|
The sched_setaffinity(2) and sched_getaffinity(2) system calls set and get the CPU affinity mask of a process. This determines the set of CPUs on which the process is eligible to run. The taskset(1) command provides a command line utility for manipulating the CPU affinity mask of a process using these system calls. For more information, see the appropriate man page.
The set_mempolicy system call sets the NUMA memory policy of the current process to policy. A NUMA machine has different memory controllers with different distances to specific CPUs. The memory policy defines in which node memory is allocated for the process.
The get_mempolicy(2) system retrieves the NUMA policy of the calling process or of a memory address, depending on the setting of flags. The numactl(8) command provides a command line utility for manipulating the NUMA memory policy of a process using these system calls.
The mbind(2) system call sets the NUMA memory policy for the pages in a specific range of a task's virtual address space.
Cpusets are designed to interact cleanly with other placement mechanisms. For example, a batch manager can use cpusets to control the CPU and memory placement of various jobs; while within each job, these other kernel mechanisms are used to manage placement in more detail. It is possible for a batch manager to change a job's cpuset placement while preserving the internal CPU affinity and NUMA memory placement policy, without requiring any special coding or awareness by the affected job.
Most jobs initialize their placement early in their timeslot, and jobs are rarely migrated until they have been running for a while. As long a batch manager does not try to migrate a job at the same time as it is adjusting its own CPU or memory placement, there is little risk of interaction between cpusets and other kernel placement mechanisms.
The CPU and memory node placement constraints imposed by cpusets always override those of these other mechanisms.
Calls to the sched_setaffinity(2) system call automatically mask off CPUs that are not allowed by the affected task's cpuset. If a request results in all the CPUs being masked off, the call fails with errno set to EINVAL. If some of the requested CPUs are allowed by the task's cpuset, the call proceeds as if only the allowed CPUs were requested. The unallowed CPUs are silently ignored. If a task is moved to a different cpuset, or if the CPUs of a cpuset are changed, the CPU affinity of the affected task or tasks is lost. If a batch manager needs to preserve the CPU affinity of the tasks in a job that is being moved, it should use the sched_setaffinity(2) and sched_getaffinity(2) calls to save and restore each affected task's CPU affinity across the move, relative to the cpuset. The cpu_set_t mask data type supported by the C library for use with the CPU affinity calls is different from the libbitmask bitmasks used by libcpuset, so some coding will be required to convert between the two, in order to calculate and preserve cpuset relative CPU affinity.
Similar to CPU affinity, calls to modify a task's NUMA memory policy silently mask off requested memory nodes outside the task's allowed cpuset, and will fail if that results in requested an empty set of memory nodes. Unlike CPU affinity, the NUMA memory policy system calls to not support one task querying or modifying another task's policy. So the kernel automatically handles preserving cpuset relative NUMA memory policy when either a task is attached to a different cpuset, or a cpusets mems value setting is changed. If the old and new mems value sets have the same size, the cpuset relative offset of affected NUMA memory policies is preserved. If the new mems value is smaller, the old mems value relative offsets are folded onto the new mems value, modulo the size of the new mems. If the new mems value is larger, then just the first N nodes are used, where N is the size of the old mems value.
If your job uses the placement mechanisms described in “Cpuset Interaction with Other Placement Mechanism” and operates under the control of a batch manager, you cannot guarantee that a migration will preserve placement done using the mechanisms. These placement mechanisms use system wide numbering of CPUs and memory nodes, not cpuset relative numbering and the job might be migrated without its knowledge while it is trying to adjust its placement. That is, between the point where an application computes the CPU or memory node on which it wants to place a thread and the point where it issues the sched_setaffinity(2), mbind(2) or set_mempolicy(2) call to direct such a placement, the thread might be migrated to a different cpuset, or its cpuset changed to different CPUs or memory nodes, invalidating the CPU or memory node number it just computed.
The libcpuset library provides the following mechanisms to support cpuset relative thread placement that is robust even if the job is being migrated using a batch scheduler.
If your job needs to pin a thread to a single CPU, you can use the convenient cpuset_pin function. This is the most common case.
If your job needs to implement some other variation of placement, such as to specific memory nodes, or to more than one CPU, you can use the following functions to safely guard such code from placement changes caused by job migration, as follows:
Jobs that make use of cpuset aware thread pinning described in “Cpusets and Thread Placement” can be safely migrated to a different cpuset or have the CPUs or memory nodes of the cpuset safely changed without destroying the per-thread placement done within the job.
To safely migrate a job to a different cpuset, perform the following steps:
Suspend the tasks in the job by sending their process group a SIGSTOP signal.
Use the cpuset_init_pidlist function and related pidlist functions to determine the list of tasks in the job.
Use sched_getaffinity(2) to query the CPU affinity of each task in the job.
Create a new cpuset, under a temporary name, with the new desired CPU and memory placement.
Invoke cpuset_migrate_all function to move the job's tasks from the old cpuset to the new cpuset.
Use cpuset_delete to delete the old cpuset.
Use rename(2) on the /dev/cpuset based path of the new temporary cpuset to rename that cpuset to the to the old cpuset name.
Convert the results of the previous sched_getaffinity(2) calls to the new cpuset placement, preserving cpuset relative offset by using the cpuset_c_rel_to_sys_cpu and related functions.
Use sched_setaffinity(2) to reestablish the per-task CPU binding of each thread in the job.
Resume the tasks in the job by sending their process group a SIGCONT signal.
The sched_getaffinity(2) and sched_setaffinity (2) C library calls are limited by C library internals to systems with 1024 CPUs or less. To write code that will work on larger systems, you should use the syscall(2) indirect system call wrapper to directly invoke the underlying system call, bypassing the C library API for these calls.
The suspend and resume operation are required in order to keep tasks in the job from changing their per thread CPU placement between steps three and six. The kernel automatically migrates the per-thread memory node placement during step four. This is necessary, because there is no way for one task to modify the NUMA memory placement policy of another task. The kernel does not automatically migrate the per-thread CPU placement, as this can be handled by the user level process doing the migration.
Migrating a job from a larger cpuset (more CPUs or nodes) to a smaller cpuset will lose placement information and subsequently moving that cpuset back to a larger cpuset will not recover that information. This loss of CPU affinity can be avoided as described above, using sched_getaffinity(2) and sched_setaffinity(2) to save and restore the placement (affinity) across such a pair of moves. This loss of NUMA memory placement information cannot be avoided because one task (the one doing the migration) cannot save nor restore the NUMA memory placement policy of another. So if a batch manager wants to migrate jobs without causing them to lose their mbind(2) or set_mempolicy(2) placement, it should only migrate to cpusets with at least as many memory nodes as the original cpuset.
For detailed information about using cpusets, see The “Cpusets on Linux” chapter in the Linux Resource Administration Guide at at http://docs.sgi.com .
This section describes cpuset settings you should pay particular attention to when running applications on large SGI Altix UV 1000 series systems.
Flag (0 or 1). If set (1), the cpuset has exclusive use of its memory nodes (no sibling or cousin may overlap). Also if set (1), the cpuset is a hardwall cpuset. See “Hardwall” section in the cpuset(7) man page for more information. By default, this is off (0). Newly created cpusets also initially default this to off (0).
Flag (0 or 1). If set (1), pages in the kernel page cache (file-system buffers) are uniformly spread across the cpuset. By default, this is off (0) in the top cpuset, and inherited from the parent cpuset in newly created cpusets. See the “Memory Spread” section in the cpuset(7) man page for more information.
Flag (0 or 1). If set (1), the cpuset is a Hardwall cpuset. See “Hardwall” section in the cpuset(7) man page for more information. Unlike mem_exclusive, there is no constraint on whether cpusets marked mem_hardwall may have overlapping memory nodes with sibling or cousin cpusets. By default, this is off (0). Newly created cpusets also initially default this to off (0).
