Instruction |
Description |
|---|---|
|
HADDPD xmm1, xmm2/m128 |
Add horizontally packed DP FP numbers from XMM2/Mem to XMM1. |

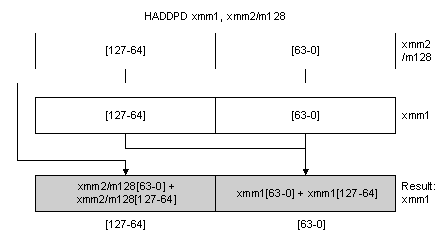

Adds the double-precision floating-point values in the high and low quadwords of the destination operand and stores the result in the low quadword of the destination operand.
Adds the double-precision floating-point values in the high and low quadwords of the source operand and stores the result in the high quadword of the destination operand.
xmm1[63-0] = xmm1[63-0] + xmm1[127-64];
xmm1[127-64] = xmm2/m128[63-0] + xmm2/m128[127-64];
When the source operand is a memory operand, the operand must be aligned on a 16-byte boundary or a general-protection exception (#GP) will be generated.
Overflow, Underflow, Invalid, Precision, Denormal.
#GP(0) For an illegal memory operand effective address in the CS, DS, ES, FS or GS segments.
#SS(0) For an illegal address in the SS segment.
#PF(fault-code) For a page fault.
#NM If TS bit in CR0 is set.
#XM For an unmasked Streaming SIMD Extensions numeric exception (CR4.OSXMMEXCPT = 1).
#UD If CR0.EM = 1.
For an unmasked Streaming SIMD Extensions numeric exception (CR4.OSXMMEXCPT = 0);
If CR4.OSFXSR(bit 9) = 0.
If CPUID.PNI(ECX bit 0) = 0.
Interrupt 13 If any part of the operand would lie outside of the effective address space from 0 to 0FFFFH.
#NM If TS bit in CR0 is set.
#XM For an unmasked Streaming SIMD Extensions numeric exception (CR4.OSXMMEXCPT = 1).
#UD If CR0.EM = 1.
For an unmasked Streaming SIMD Extensions numeric exception (CR4.OSXMMEXCPT = 0).
If CR4.OSFXSR(bit 9) = 0.
If CPUID.PNI(ECX bit 0) = 0.
Interrupt 13 If any part of the operand would lie outside of the effective address space from 0 to 0FFFFH.
#NM If TS bit in CR0 is set.
#XM For an unmasked Streaming SIMD Extensions numeric exception (CR4.OSXMMEXCPT = 1).
#UD If CR0.EM = 1.
For an unmasked Streaming SIMD Extensions numeric exception (CR4.OSXMMEXCPT = 0).
If CR4.OSFXSR(bit 9) = 0.
If CPUID.PNI(ECX bit 0) = 0.
#PF(fault-code) For a page fault.
For details, see Volume 2A and Volume 2B of the Intel(R) 64 and IA-32 Intel Architecture Software Developer's Manual. For the latest updates on the instruction set information, go to the web site.
